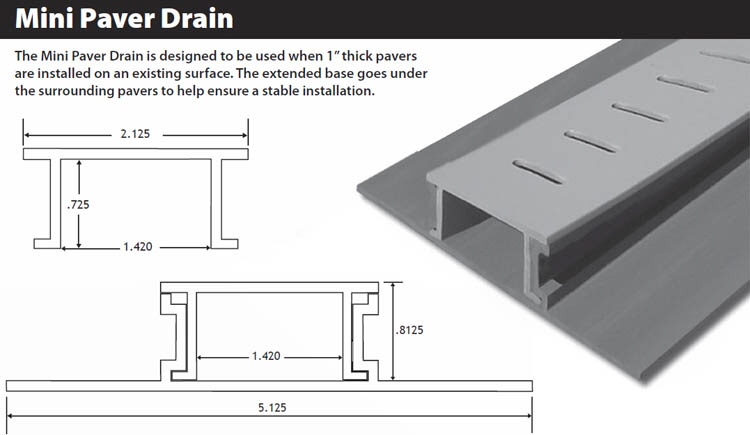

Mini-Paver Drain with Removable Tops - For 1" Pavers


The Mini Paver Drain is designed to be used when 1" thick pavers are installed on an existing surface. The extended base goes under the surrounding pavers to ensure a stable installation.  Available in Colors:  White, Grey, Tan, and Marble.   The Flat Contour profile allows for a tight fit.

The Mini-Paver Drain is an easy to use, very effective, and affordable deck drain that has been used for many years in pool decks, patios and other decorative concrete applications.

• Stable
• Good Quality
• Durable

• Provides an effective drainage system for concrete pool decks. Ideal for Anywhere water collects and Needs to be carried away.

• Made of tough, long lasting PVC, Non-corrosive.


• 80-Linear Feet per Case.  Sold in Full Case Lots only.

• Each case has (8) 10' Bases and (8) 10' Drain Tops.

• Each case comes with Eight (8) Couplings.

• Note: For each fitting, you will need 2 couplings.  (90's and 45's require 2-couplings.)


• Flat contour profile allows a tight fit. Pavers help keep it in place.

• Installs Easily.  Couplings Snap other fittings together.

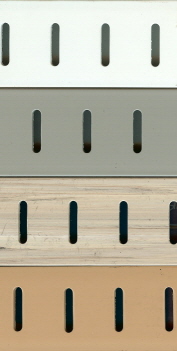

• Available Colors: Listed below in order from top to bottom:   White, Grey, Marble, or Tan  (Marble is a special order and may require a lead time of at least 2-3 weeks.)  These are scans of samples of the actual product.   Colors are approximate and are intended to be true; however some colors can be seen differently due to human error and computer settings.  Previously installed colors may look differently from age and the elements.)


Part #	Description	Price	Order	Photo
SDD-MP2W	Mini-Paver Drain, White, Case of 80 Linear Feet (8 x 10' Lengths)	419.00		Full Case Lots
SDD-MP2G	Mini-Paver Drain, Grey, Case of 80 Linear Feet (8 x 10' Lengths)	419.00		Full Case Lots
SDD-MP2T	Mini-Paver Drain, Tan, Case of 80 Linear Feet (8 x 10' Lengths)	419.00		Full Case Lots
SDD-MP2M	Mini-Paver Drain, Marble, Case of 80 Linear Feet (8 x 10' Lengths), Special Order	419.00		Full Case Lots
Fittings:	Specify Which Color when Ordering!
SDD-MP4W	45 Degree Angle Bend for Mini Paver Drain, White	23.75
SDD-MP4G	45 Degree Angle Bend for Mini Paver Drain, Grey	23.75
SDD-MP4T	45 Degree Angle Bend for Mini Paver Drain, Tan	23.75
SDD-MP4M	45 Degree Angle Bend for Mini Paver Drain, Marble	23.75
SDD-MP9W	90 Degree Angle Bend for Mini Paver Drain, White	23.75
SDD-MP9G	90 Degree Angle Bend for Mini Paver Drain, Grey	23.75
SDD-MP9T	90 Degree Angle Bend for Mini Paver Drain, Tan	23.75
SDD-MP9M	90 Degree Angle Bend for Mini Paver Drain, Marble	23.75
SDD-MPAW	Down Adapter for Mini Paver Drain, White	23.75
SDD-MPAG	Down Adapter for Mini Paver Drain, Grey	23.75
SDD-MPAT	Down Adapter for Mini Paver Drain, Tan	23.75
SDD-MPAM	Down Adapter for Mini Paver Drain, Marble	23.75
SDD-MPDEAW	End Adapter for Mini Paver Drain, White	23.75
SDD-MPDEAG	End Adapter for Mini Paver Drain, Grey	23.75
SDD-MPDEAT	End Adapter for Mini Paver Drain, Tan	23.75
SDD-MPDEAM	End Adapter for Mini Paver Drain, Marble	23.75
SDD-MPDDCUP	Coupling for Mini Paver Drain	4.00
SDD-MPDEP	End Plug for Mini Paver Drain	9.85

 (Additional Freight Charges May Apply.  Cases must ship via Motor Freight Carrier (Tractor Trailer).  Please Call 410-252-2079 before ordering for a freight quote.)

Colors shown on this site may vary slightly from those of actual products because of characteristics of printing inks.

Swimming Pool Deck Equipment

Replacement Tops Caps Only (White, Grey, or Tan) - For Removable Top Deck Drain

3" Commercial Deck Drains

4-3/4" Wide Commercial Deck Drains

Paver Deck Drains

Back to Aquamasters USA Swimming Pool Catalog



All Deck Drains must ship via Common Carrier, and are sold by the case.  Deck Drains are special order items.

Orders must be Pre-Paid by major credit card: Visa, MasterCard, Discover, Certified Check, Money Order, or Check in Advance.   Aquamasters, Inc. reserves the right to require a certified check in lieu of credit card for certain items.  All Sales are Final.  No returns on special order items.   For returns of Stocking Items, an RGA (Return Goods Authorization) Number is required.  There will be a 25% Restocking Fee on Product Only.  We cannot refund shipping costs.
Shipping: Most Items can ship UPS.  Orders over 150-Lbs (combined)  or items that are too large to ship UPS will be sent via (Motor Freight Carrier) at an additional expense.  Some items less than 150-lbs must be shipped via Motor Freight because of "dimensional weight."  Questions about Shipping, Email us at custserv@aquamasters.com for Freight Quote. We need City, State, & zip code.   Hours are  9am - 5pm Eastern Time (EST).  You can Order On-Line or Call (410) 252-2079.
Not Shipping Overseas at this time.   Minimum Order $50.00.  Orders under $50 may be subject to an additional handling fee.  Prices, Product Specifications, and Appearances may be subject to change without notice.  Copyright 2014  Aquamasters, Inc.    Last Updated April 2015.  Prices are in US Dollars & are Subject to Change without Notice.  Emailed Quotes are good for 30 days unless otherwise specified.    Aquamasters Home Page
Disclaimer: The information contained herein is included for illustrative purposes only, and to the best of our knowledge, is accurate and reliable.  Aquamasters, Inc) cannot however under any circumstances make any guarantee of results or assume any obligation or liability in connection with the use of this information.  As Aquamasters, Inc. has no control over the use to which others may put its product, it is recommended that the products be tested to determine if suitable for specific application and/or our information is valid in a particular circumstance.  Responsibility remains with the architect or engineer, contractor and owner for the design, application and proper installation of each product.  Specifier and user shall determine the suitability of products for specific application and assume all responsibilities in connection therewith.
