Commercial Aquatic Equipment & Pool and Spa Parts
For Questions, please email to
 custserv@aquamasters.com   410-252-2079
The Source of Your Aquatic Equipment, Needs, & Supplies, Pool Parts



4-3/4" Wide Commercial Pool Deck Drain with Removable Tops

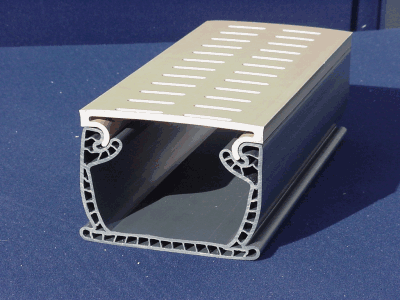

The Flowmaster Commercial Drain System is a 4-3/4 removable top drain that features a double wall base and a snap in top (PVC). When installing this drain the tops are staggered past the joints making the joints very rigid. Because the Flowmaster Commercial Deck Drain tops are removable this drain is easy to clean and the tops can be replaced if ever damaged.  Flowmaster Commercial Deck Drain is used on many commercial swimming pools, patios and other areas where large amounts of water need to be removed.

Full range of Deck Drain Fittings available.   Specify Which Color When Ordering.

Part #

Description

Price

Order


SDD-FMW-CS 4-3/4" Commercial Deck Drain with Removable Tops, White, 40 Feet, per Case (4 x 10' Lengths) 895.00
SDD-FMT-CS 4-3/4" Commercial Deck Drain with Removable Tops, Tan 40 Feet, per Case (4 x 10' Lengths) 895.00
SDD-FMG-CS 4-3/4" Commercial Deck Drain with Removable Tops, Grey, 40 Feet, per Case (4 x 10' Lengths) 895.00

Fittings: Specify Which Color when Ordering!


SDD-FM-4


45 Degree Bend for 4-3/4-inch Commercial Removable Top Drain


46.25




SDD-FM-9


90 Degree Bend for 4-3/4-inch Commercial Removable Top Drain


46.25




SD
D-FM-DA


Bottom Down Adapter for 4-3/4-inch Commercial Removable Top Drain


56.95




SD
D
-FM-SA


Side Adapter for 4-3/4-inch Commercial Removable Top Drain


56.95




SDD-FM-DEA


End Adapter for
4-3/4-inch Commercial Removable Top Drain


53.50



SDD-FM-Tee

Tee Fitting, for 4-3/4-inch Commercial Removable Top Drain


64.75


SDD-FM-DEP

End Plug for
4-3/4-inch Commercial Removable Top Drain

31.95



SDD-FM-Dcup


Coupling, Joins
4-3/4-inch Commercial Removable Top Drain Together


7.50




Each Carton Includes:

  • Four (4) 10 Bases
  • Four (4) 10 Top Caps
  • Four (4) Couplings to Connect the drains together

Top Caps Only for Flowmaster Commercial Drain

Part #

Description

Price

Order


SDD-FM-TCW Top Caps Only for 4-3/4" Commercial Flowmaster Drain, White Color, Case of Four (4) x 10-FT Lengths 495.00
SDD-FM-TCG Top Caps Only for 4-3/4" Commercial Flowmaster Drain, Grey Color, Case of Four (4) x 10-FT Lengths 495.00
SDD-FM-TCT Top Caps Only for 4-3/4" Commercial Flowmaster Drain, tan Color, Case of Four (4) x 10-FT Lengths 495.00



Example of Colors:

These are scans of samples of the actual product.   Colors are approximate and are intended to be true; however some colors can be seen differently due to human error and computer settings.  Previously installed colors may look differently from age and the elements.)


Items on this Page Ship via Common Carrier (Motor Freight).

Swimming Pool Deck Equipment

Replacement Tops for Pool Deck Drain

Double-Walled Plastic Deck Drain System with Removable Tops!

Back to Aquamasters USA Swimming Pool Catalog



All Deck Drains must ship via Common Carrier, and are sold by the case.  Deck Drains are special order items.    (No Returns.)
