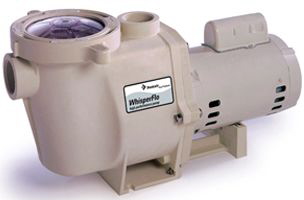

Whisperflo Pump Replacement Parts

Aquamasters, Inc. carries a complete line of pool and spa pump parts.  We carry pump strainer baskets, pump lid assemblies, hand knobs, wet ends, gaskets, O-Rings, Housings, impellers, diffusers, shaft seals, seal plates, impeller keys, and replacement motors from the leading manufactures such as Hayward, Pentair, PacFab, Rainbow, Sta-Rite, Marlow, AquaFlo, and more pumps.




Notes:

This kit is REQUIRED if replacing the seal plate, volute, lid, or lid clamp for any pump manufactured after June 1994. The seal plate and volute were first updated in June 1994 and the volute was updated to the Cam & Ramp design in November 1998. The replacement kit contains new key numbers 1-4, 9, 10, 18, 24, & 25.

-Key #18 - For the old style seal plate, see key #26

Notes:
Some Pentair products may have previously been branded as American, Kreepy Krauly, Letro, PacFab, Purex, Rainbow.

For pumps Before 11/98, when replacing this item, use #10, 357149 to update pump.

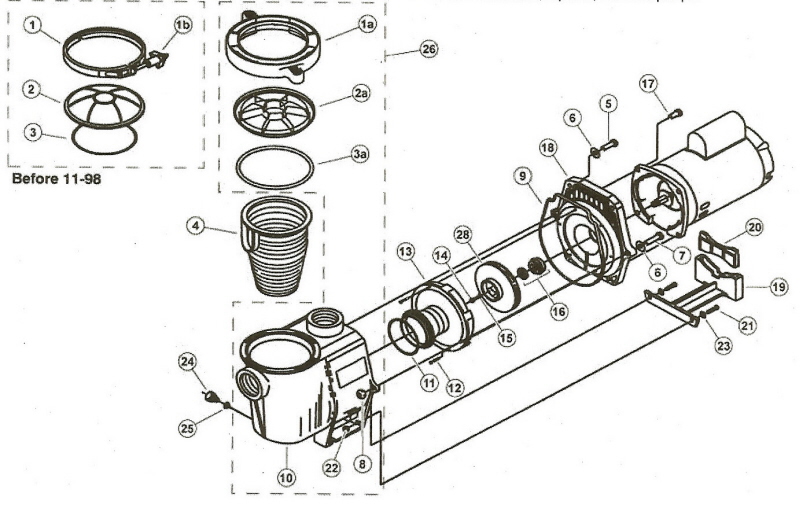

Key #

 Part # Description Each Image Buy Pool Parts
1 PF-070711 Clamp Ring, Pentair Purex Whisperflo, Quietflo 91.10
1a PF-357150 Clamp Ring, Pentair Purex Whisperflo, 11/98-12/99, Black 49.23
1a PF-357199 Clamp Ring, Pentair Purex Whisperflo, After 12/99, Almond 49.23
1b PF-071136 Filter / Pump Knob, Pentair Purex PacFab, Clamp Ring 27.77
2 PF-070795 Trap Lid, Pentair Purex Whisperflo, Quietflo, pre 11/98 51.54
2a PF-357156 Trap Lid, Pentair Purex Whisperflo, IntelliFlo 69.86
2a PF-357151 Trap Lid, Pentair Purex Whisperflo, After 11/98 37.06
3 90-423-5256 O-Ring, Buna-N, 5-3/4" ID, 1/8" Cross Section, Generic 10.95
3a 90-423-5435 O-Ring, Buna-N, 5-3/4" ID, 1/4" Cross Section, Generic 10.95
4 PF-070387 Pump Basket, OEM, Pentair Purex Whisperflo, Aquatron, Intelliflo 23.13
4 Bask-27182-199 Pump Basket, Generic, Pentair/Purex, Aquatron, Whisper-Flo H/D 23.36
5 PF-070430 Bolt, Pentair American Prods, Purex, 3/8-16 x 1-1/4" 3.27
6 PF-072184 Washer, Pentair, 3/8" 2.00
7 PF-070431 Bolt, Pentair Purex Whisperflo/IntelliFlo, 3/8-16 x 1-3/4" 3.60
8 PF-071403 Nut, Pentair Purex Whisperflo / IntelliFlo, 3/8-16 2.00
9 PF-071445 O-Ring, Pentair Purex Whisperflo, Pre 6/94 20.78
9 PF-357102 Gasket, Pent Purex IntelliFlo/Whisperflo,Seal Plate,pre 2/08 8.19
10 PF-357149 Trap/Pump Body, Pent Purex Whisperflo/IntelliFlo, After 6/94 298.00
10 PF-350015 Trap/Pump Body, Pent Purex Whisperflo IntelliFlo, After 11/98 235.00
11 90-423-5238 O-Ring, Buna-N, 3-1/2" ID, 1/8" Cross Section, Generic 8.95
12 PF-071660 Screw, Pentair Purex IntelliFlo/Whisperflo, 4-40 x 1/18" 4.30
13 PF-072928 Diffuser only, Pentair IntelliFlo, Whisperflo, 3-HP 93.75
13 PF-072927 Diffuser, Pentair Purex, IntelliFlo, Whisperflo, 0.75-2.5hp 78.45
14 PF-071652 Screw, Pentair Purex Whisperflo, IntelliFlo, 1/4-20 x 1" 3.45
15 PF-075713 Washer, Pentair Purex IntelliFlo VF/Whisperflo, Rubber 2.00
16 PS-1000 Shaft Seal, PS-1000, 5/8" Shaft, Buna 12.25
17 PF-070429 Bolt only, Pentair American, Purex, 3/8-16 x 7/8" 3.60
18 PF-074564 Seal Plate, Pentair Purex IntelliFlo VS, Almond,6/94-present 98.00
19 PF-070927 Pump Stand, Pentair Purex Whisperflo or IntelliFlo 39.56
20 PF-070929 Motor Support, Whisperflo, IntelliFlo 23.13
21 PF-071657 Screw only, Pentair, Purex, Whisperflo, IntelliFlo, 1/4-20 x 1" 2.00
22 PF-071406 Nut only, Pentair Purex Whisperflo, IntelliFlo, 1/4-20 2.00
23 PF-072183 Washer only, Pentair Purex Whisperflo/IntelliFlo, 1/4-20 2.00
24 PF-071131 Drain Plug, Pentair StaRite/Purex, 1/4" 8.25
25 PF-074629 Gasket, Pentair Purex Whisperflo, Drain Plug 2.00
26 PF-357149 Trap/Pump Body, Pent Purex Whisperflo/IntelliFlo, After 6/94 298.00
28 PF-073126 Impeller, Pentair Purex Whisperflo, 0.5hp 89.25
28 PF-073127 Impeller, Pentair Purex Whisperflo, 0.75hp 91.95
28 PF-073128 Impeller, Pentair Purex Whisperflo, 1.0hp 93.75
28 PF-073129 Impeller, Pentair Purex Whisperflo, 1.5hp 95.45
28 PF-073130 Impeller, Pentair Purex Whisperflo, 2.0hp
 		 98.00
28 PF-073131 Impeller, Pentair Purex Whisperflo, 3.0hp 99.75



Replacement Motors for Whisperflo Pumps:
      071313S 3/4 HP Motor 115/208/230V, energy efficient 365.94
      071314S 1 HP Motor 115/208/230V, energy efficient 397.36
      071315S 1-1/2 HP Motor 208/230V, energy efficient 468.07
      071316S 2 HP Motor 208/230V, energy efficient 557.67
      071317S 3 HP Motor 208/230V, energy efficient 728.76
      071320S 1-1/2 HP Motor 2 speed 230V 620.53
      071321S 2 HP Motor 2 speed 230V 775.73
      075232S 1/2 HP Motor 115/230V 302.03
      075233S 3/4 HP Motor 115/230V 342.54
      075234S 1 HP Motor 115/230V 380.81
      075235S 1-1/2 HP Motor 115/230V 471.83
      075236S 2 HP Motor 230V 557.31
      075237S 3 HP Motor 230V 725.10
      355204S 1-1/2 HP Motor black 3 phase 208-230V 551.70
      355205S 2 HP Motor black 3 phase 208-230V 613.51
      355398S 3 HP Motor black 3 phase 208-230/460V 742.67
      356626S 1 HP Motor 3 phase 208-230/460V 442.29
      356627S 1-1/2 HP Motor almond 3 phase 208-230/460V 549.92
      356628S 2 HP Motor almond 3 phase 208-230/460V 613.51
      356629S 3 HP Motor almond 3 phase 208-230/460V 742.67
      356630S 1 HP Motor 2 speed 230V 512.54
Wet End Assemblies:
    075452 WFE-3 fluid end, 3/4 HP 784.94
    075453 WFE-4 fluid end, 1 HP 770.17
    075454 WFE-6 fluid end, 1-1/2 HP 777.36
    075455 WFE-8 fluid end, 2 HP 770.66
    075456 WFE-12 fluid end, 3 HP 768.08
Power End Sub-Assemblies, inc. #s 12-18, 27 & 28:
    075137 WFE-3, WFE-24 , Energy Efficient, Single Phase 1,005.85
    075138 WFE-4, WFE-26 , Energy Efficient, Single Phase 1,070.80
    075139 WFE-6, WFE-28 , Energy Efficient, Single Phase 1,254.55
    075140 WFE-8, WFE-30 , Energy Efficient, Single Phase 1,442.79
    075141 WFE-12 , Energy Efficient, Single Phase 1,790.92
    075142 WFEDS-4 , Two Speed, Single Phase 1,322.94
    075143 WFEDS-6, WFEDS-28 , Two Speed, Single Phase 1,545.76
    075252 WF-3, WF-24 , Standard Efficiency, Single Phase 9,85.29
    075253 WF-4, WF-26 , Standard Efficiency, Single Phase 1,040.68
    075254 WF-6, WF-28 , Standard Efficiency, Single Phase 1,234.93
    075255 WF-8, WF-30 , Standard Efficiency, Single Phase 1,419.30
    075256 WF-12 , Standard Efficiency, Single Phase 1,778.88
    355227 WFEDS-8, WFEDS-30 , Two Speed, Single Phase 6.22
Notes:
Some Pentair products may have previously been branded as American, Kreepy Krauly, Letro, PacFab, Purex, Rainbow.

For pumps pre 11/98, when replacing this item, use #10, 357149 to update pump.
