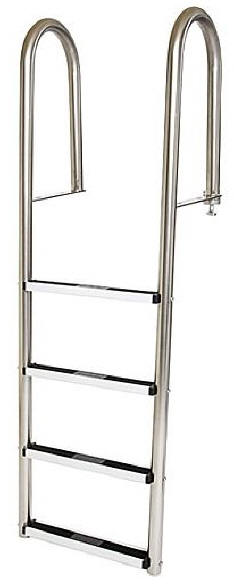

This is a moderate height dock ladder available with 4,5 or 6 treads
and suitable for light to moderate duty in both residential and commercial applications in
most geographic areas. Standard Features
The frames of 12" Commercial/Residential Dock
Ladder are of polished 1.9" Outer Diameter, 304 stainless steel with a wall

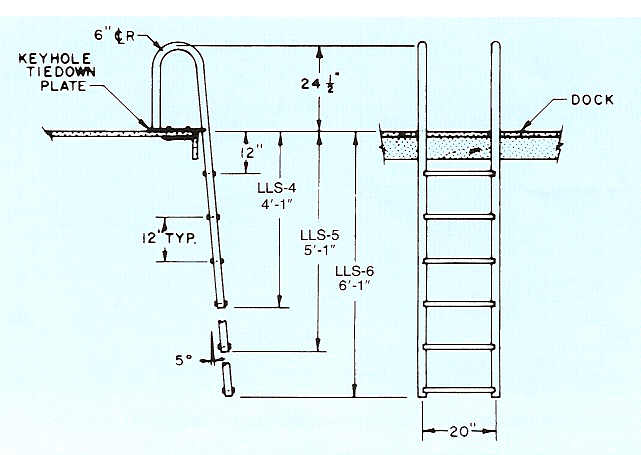

thickness of .065". The ladder frames surface-mount directly to docks and other
appropriate surfaces by flat keyhole punched 304 stainless steel brackets. Bolts
and related hardware for mounting the ladder to the dock are not included. The
upper portions of the ladder frames rest against the top edge of the dock and
then extends at a slight angle to permit easy mounting of the ladder.
Each dock ladder
includes Type 304 stainless steel Elite
Treads. Treads mount to the ladder frames by included heavy-duty stainless steel hardware.
Marine Grade Features
The marine grade version of this unit is identical to the standard
unit except it features frames of polished 1.9" Outer Diameter, 316 stainless steel.
These units are suitable for use in that geographic area requiring the additional
protection of a very high grade of stainless steel because of local environmental
considerations.
Special Note
Marine Grade units provide substantial additional protection.
However, this and all stainless steel must receive proper care to prevent discoloration,
corrosion and pitting. Mounting bolts and hardware are not included. Mounting
hardware depends on customer's preference.
Part # |
Description |
Price |
Order |
LadDock4 |
Dock Ladder, Stainless Steel,
4-Step |
1049.00 |
|
LadDock5 |
Dock Ladder, Stainless Steel,
5-Step |
1125.00 |
|
LadDock6 |
Dock Ladder, Stainless Steel,
6-Step |
1195.00 |
|
|
|
|
|
LadDock4MG |
Dock Ladder, Stainless Steel,
4-Step, Marine Grade |
1189.00 |
|
LadDock5MG |
Dock Ladder, Stainless Steel,
5-Step, Marine Grade |
1269.00 |
|
LadDock6MG |
Dock Ladder, Stainless Steel,
6-Step, Marine Grade |
1359.00 |
|
|
** Marine Grade is #316
Stainless Steel |
|
|
|
